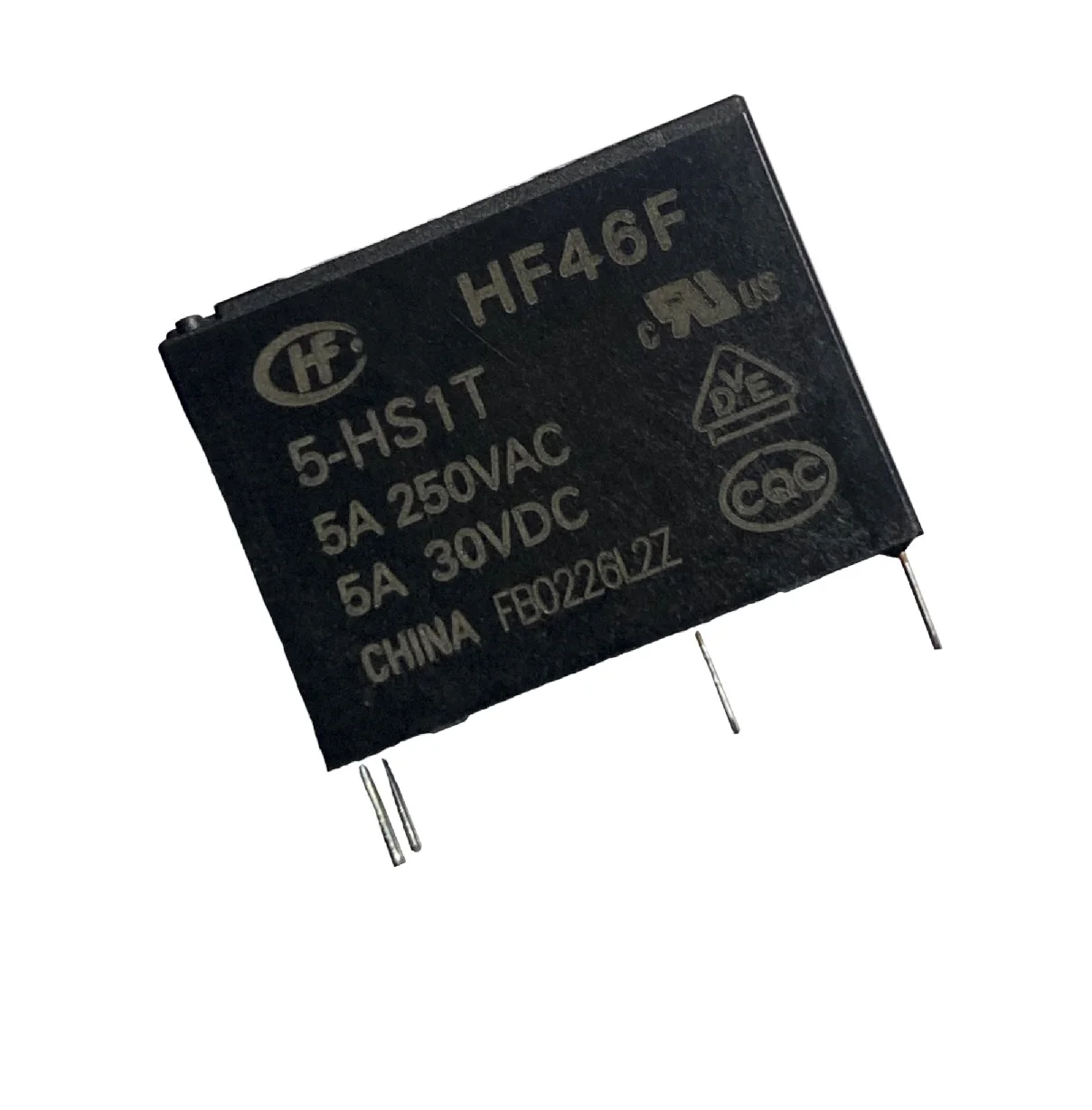

Hongfa HF46F 05-HS1T 5VDC Subminiature Intermediate Relay
₹42.00 (incl. GST)
Out of stock
Want to be notified when this product is back in stock?
Additional Information
✅ Prices Includes GST (GST Invoice Available)
✅ Free Shipping on Orders Above ₹999
✅ Items on Website is Ready Stock at our Store for Immediate Shipping
✅ Secure Checkout | Trusted Payments
✅ Estimated Delivery?
✅ Free Shipping on Orders Above ₹999
✅ Items on Website is Ready Stock at our Store for Immediate Shipping
✅ Secure Checkout | Trusted Payments
✅ Estimated Delivery?
Hongfa HF46F 05-HS1T 5VDC Subminiature Intermediate Relay offers 5A switching capability, 10kV impulse withstand voltage (between coil and contacts), environmentally friendly product and meets reinforce insulation.
Features
- 5A switching capability
- Meets VDE 0700, 0631 reinforce insulation
- Highly efficient magnetic circuit for high sensitivity: 200mW
- Extremely small footprint, utilizing PCB area
Specifications:
- Brand: Hongfa
- Model : 05-HS1T
- Coil Voltage (DC): 5 V
- Contact Arrangement: 1 Form A
- Contact Current Rating: 5 A
- Termination: PCB
- Mounting: PCB-THT
- Contact capacity: AgSnO2In2O3
- Insulation standard: Class B
- Dielectric strength (between coil & contacts): 4000VAC 1min
- Rated voltage: 250VAC
- Coil power: Approx 0.2W
- Operate time: < 10ms
- Release time: < 10ms
- Creepage Distance: 5mm
- Insulation resistance: 1000MOhm
- Max Switching Current (AC): 5AC
- Electrical Distance: 5mm
- Mechanical endurance: 5000000
- Ambient temperature: -40~85C
- Max Switching Voltage (VAC): 277VAC
- Weight: Approx. 3g
- Max Switching Voltage (VDC): 30VDC
- Electrical endurance: 100000
- Size: 20.5x7x15.3mm
Package Includes:
- 1 x Hongfa HF46F series 5VDC Subminiature Intermediate Relay
Useful Link:
1 review for Hongfa HF46F 05-HS1T 5VDC Subminiature Intermediate Relay
Add a review
Related products
Chetan Choudhari (verified owner) –
Relay starts from 3.2V current @ 4V is 30 mas.
