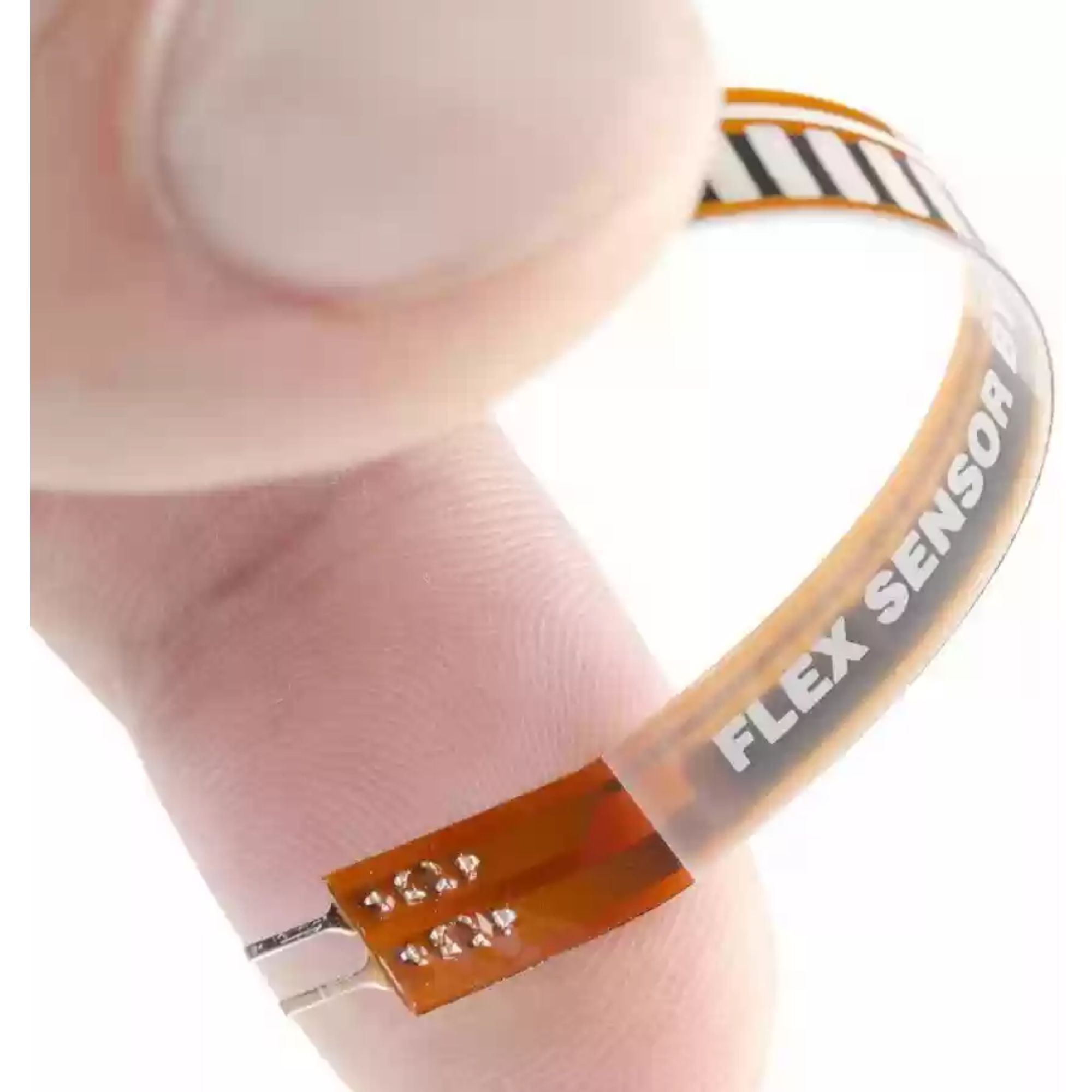

Flex Sensor 2.2 inch Bend Sensor for Hand Gesture Recognition

A simple Flex Sensor 2.2 inch Bend Sensor for Hand Gesture Recognition with a length of 2.2 inch which bends and flexes with a physical device. As the sensor is flex, the resistance across the sensor increases. A connector is 0.1″ spaced and breadboard friendly. Applications in – Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments, Physical Therapy.

The flex sensor is a bend detecting sensor that has got numerous applications in robotics, medical and haptic technology. The resistance of these sensors changes in accordance with the bend, which can be measured using any micro-controller.

Features:

• Angle Displacement Measurement.
• Bends and Flexes physically with the motion device.
• Simple Construction.

Specifications:

• Flex length(mm): 2.2″ (56)
• Total Length (cm): 7
• Life Cycle: >1 million
• Height: 0.43mm (0.017″)
• Flat Resistance: 10K Ohms ±30%
• Bend Resistance: minimum 20K Ohms ±30% (@ 180° pinch bend)
• Power Rating: 0.5 Watts continuous; 1 Watt Peak.

Applications:

• Angle Displacement Measurement.
• Bends and Flexes physically with the motion device.
• Robotics Applications.
• Gaming (Virtual Motion).
• Medical Devices.
• Computer Peripherals.
• Musical Instruments.
• Physical Therapy.

Package Includes:

• 1 x Flex Sensor 2.2″

Note: The base of the sensor is sensitive to bending and may get damaged. Make sure that you bend only the sensing area. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.
