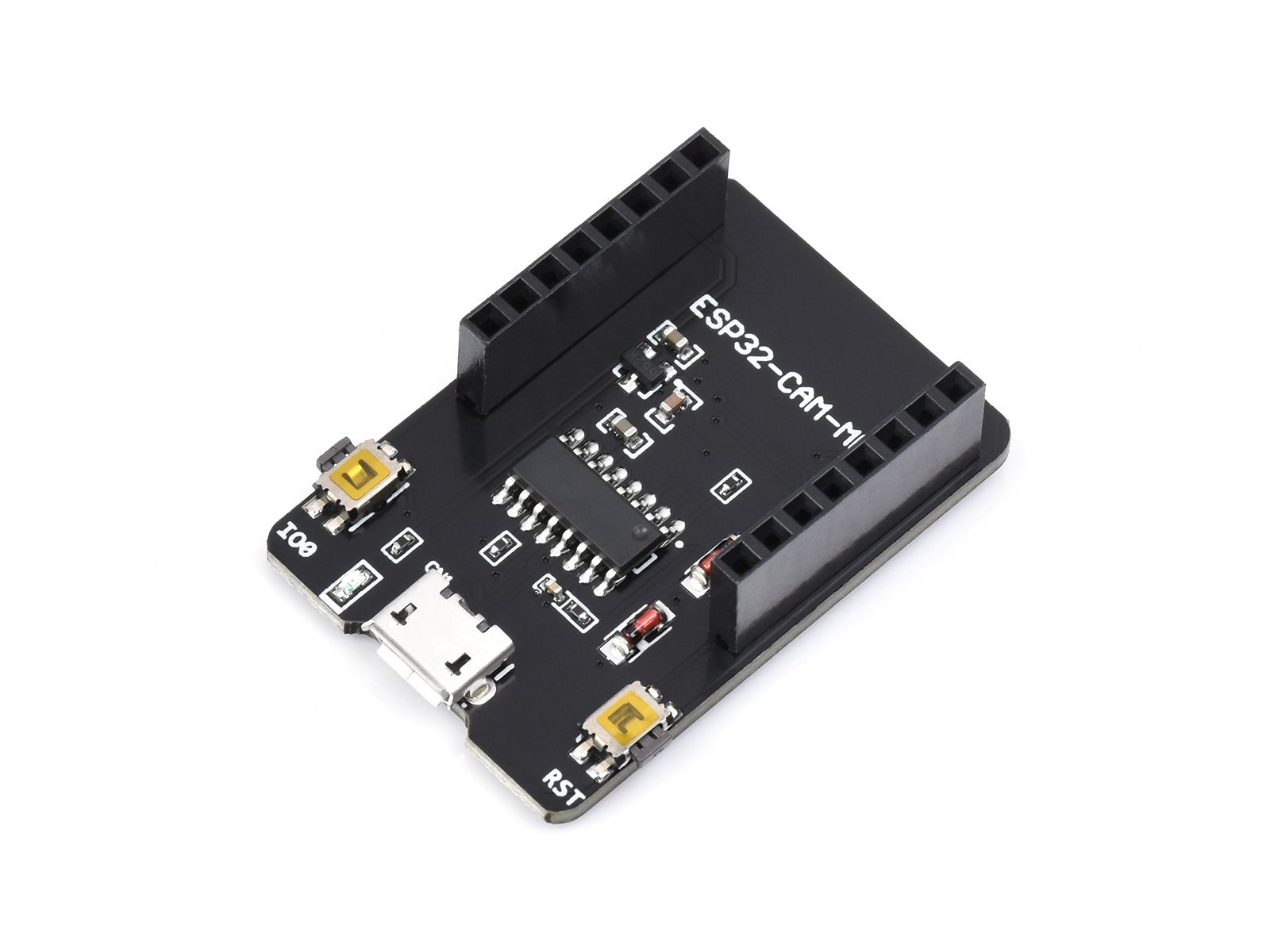

ESP32-CAM-MB MICRO USB Download Module for ESP32 CAM Development Board

This is a ESP32-CAM-MB MICRO USB Download Module for ESP32 CAM Development Board and  contains features which are ‘missing’ on esp 32 cam module.

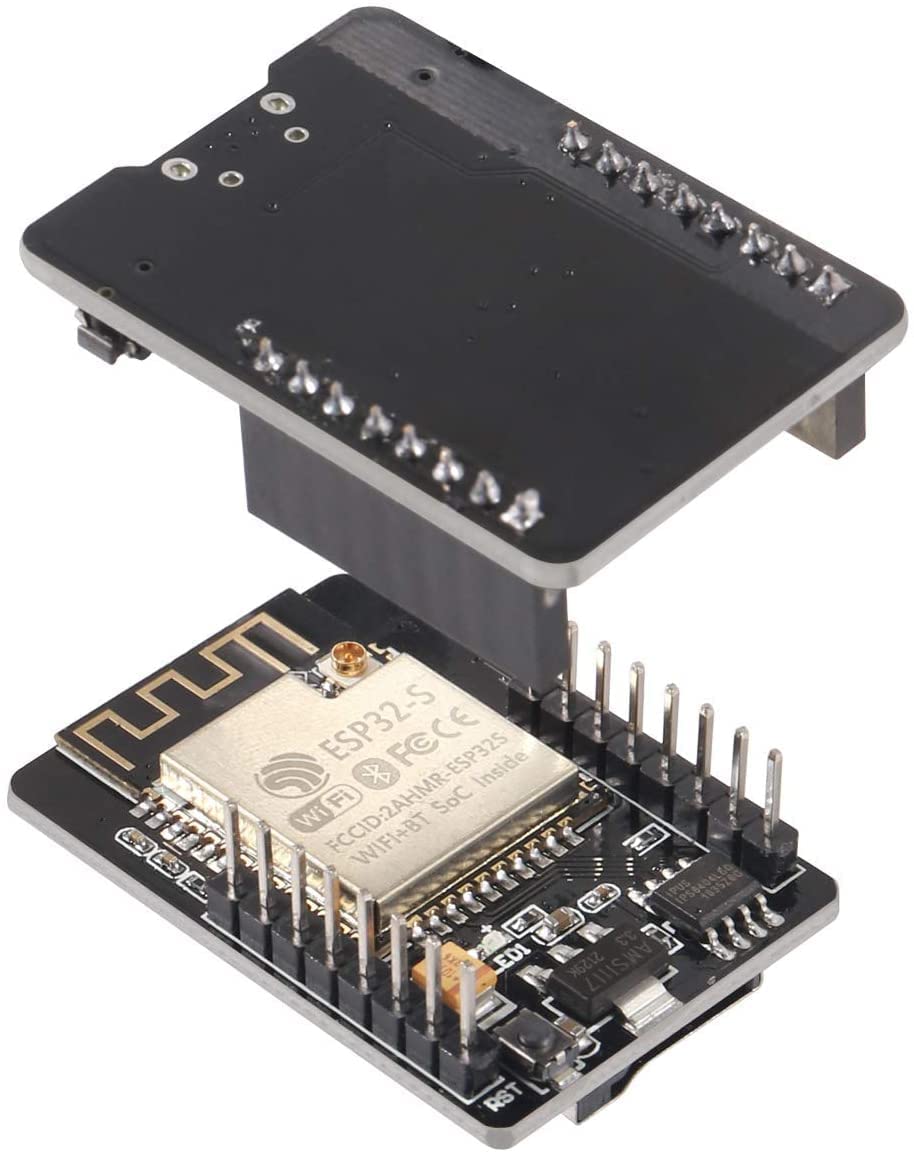

The ESP32-CAM MB programmer Shield is a shield that you attach to your ESP32-CAM board GPIOs. The programmer comes with the CH340C USB to serial chip. This allows you to program the ESP32-CAM using the USB port on the shield. The shield also comes with a RESET button. This may be useful to easily reset the ESP32-CAM or put it into flashing mode.

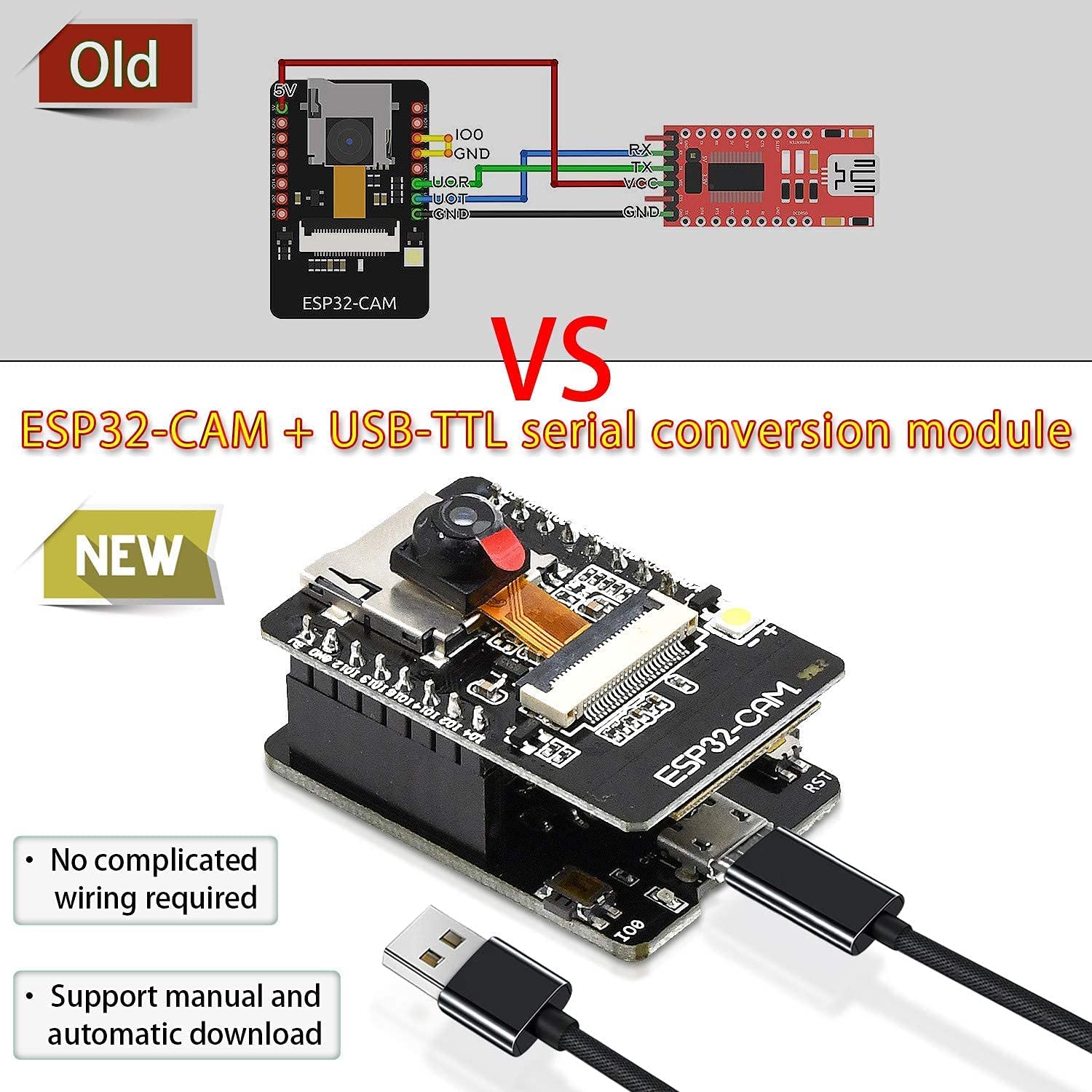

This adapter board is specifically designed for the ESP32 CAM board. It allows the ESP-32 CAM module to be powered and automatically programmed from a computers USB port. It is also fully compatible with the Arduino IDE allowing sketches to be automatically uploaded just like any other Arduino development board.

For USB connection the adapter board uses the common CH340 USB driver IC and connection is via a microUSB interface (microUSB cable not supplied).

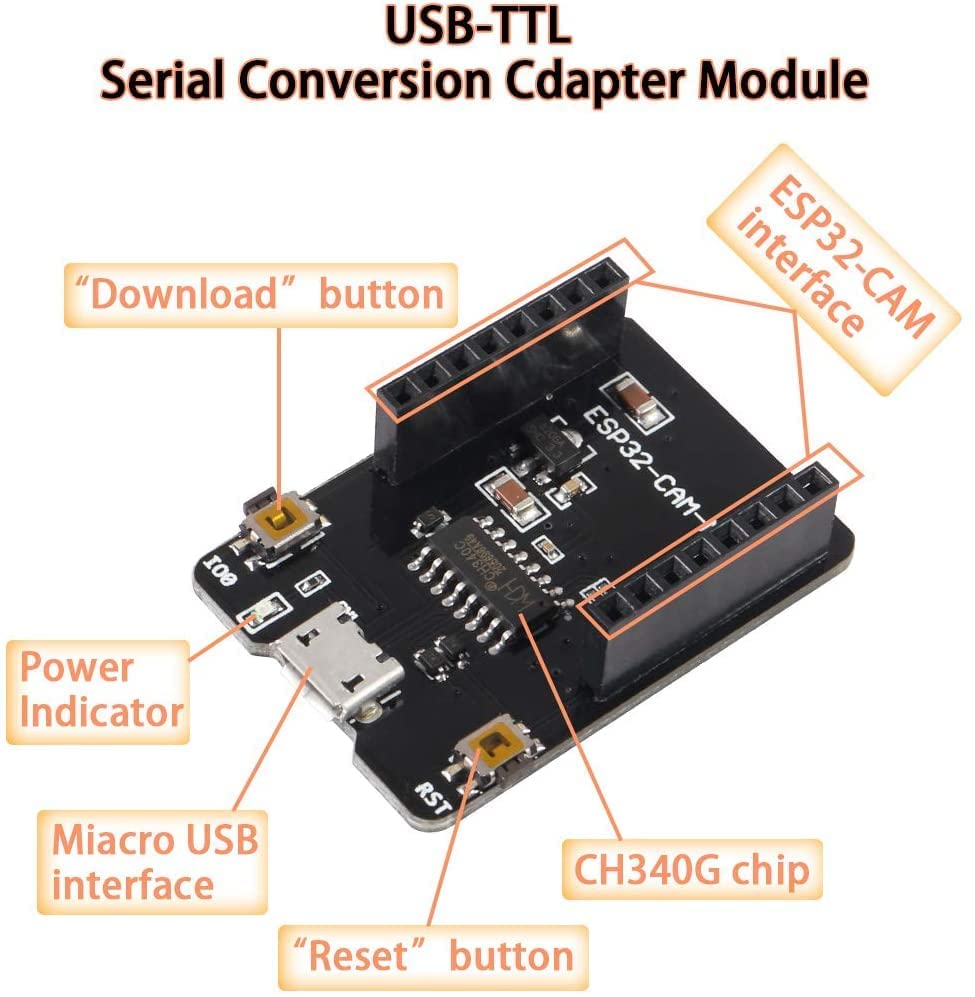

Features:

• Micro-usb port
• CH340 serial to usb adapter
• Power regulator
• boot & reset buttons

Specifications:

• Model: ESP32-CAM-MB
• Color:: Black
• Chipset: CH340G
• Connectivity: Micro-USB
• IO Port: 9
• Power Supply(V): 5
• Dimensions (mm): 40x25x10

The USB driver for this adapter can be downloaded from the manufacturers website here.

Package Includes:

• 1 x ESP32-CAM-MB MICRO USB Download Module for ESP32 Camera Development Board

Note: The camera module is not included with the board. Actual product may vary in terms of design.
