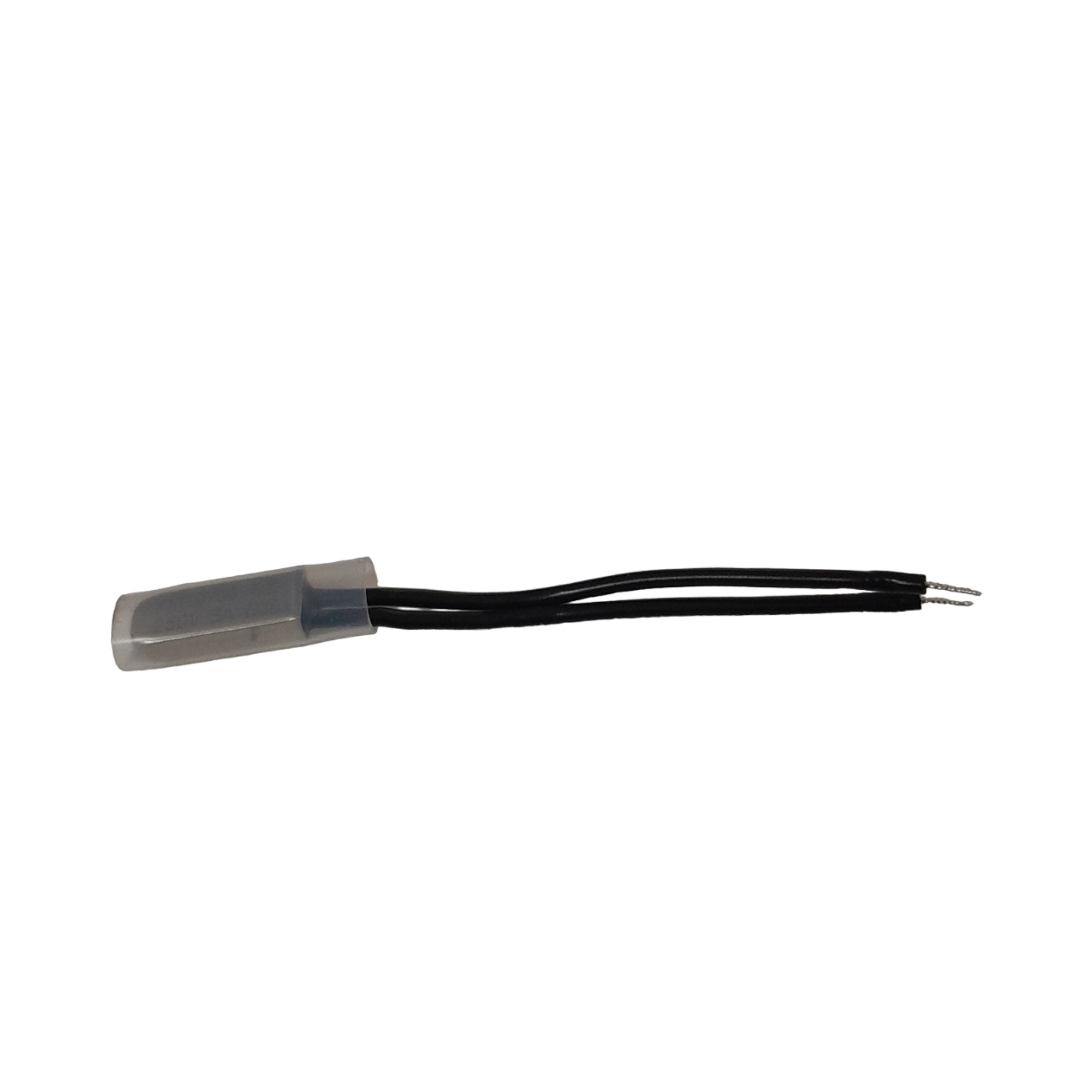

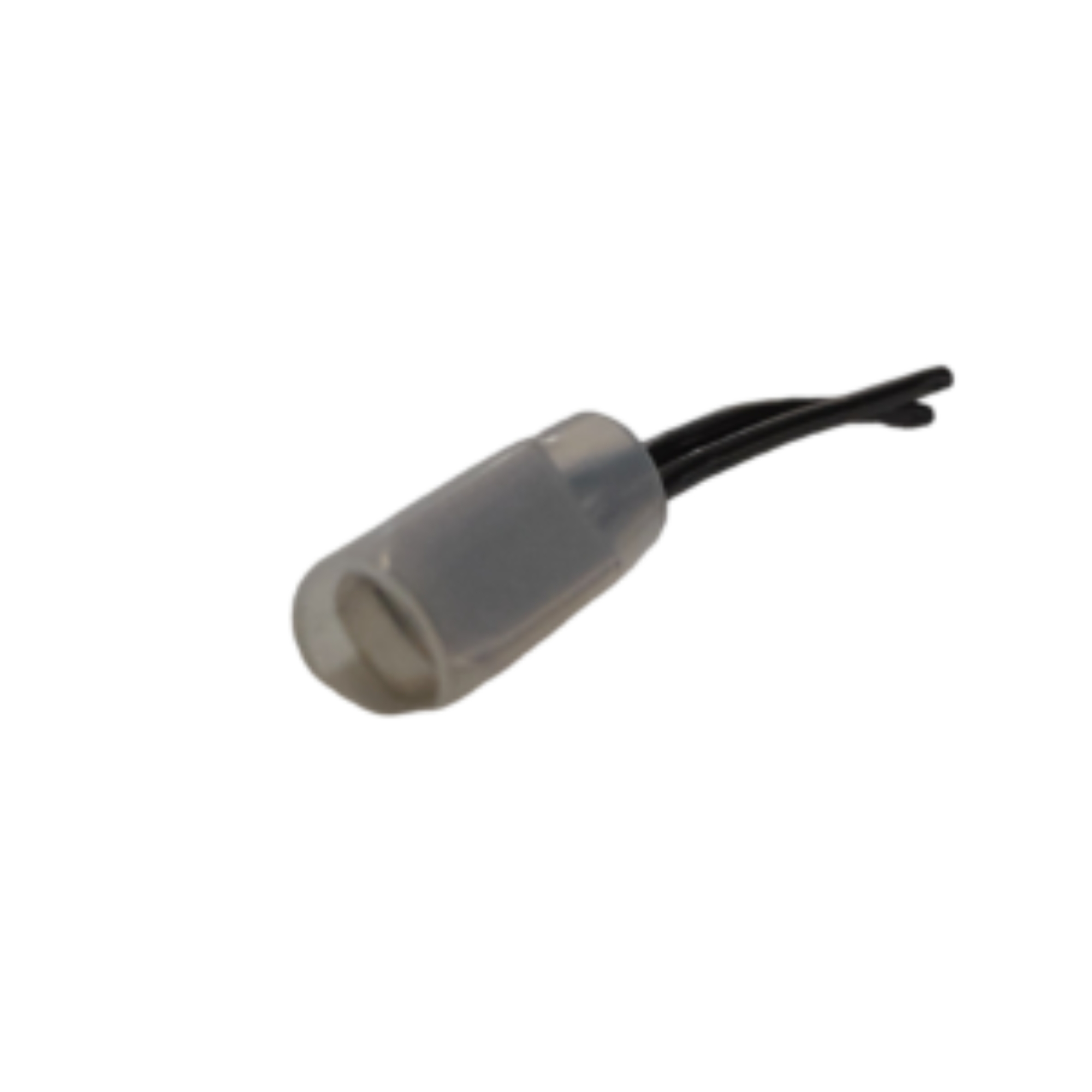

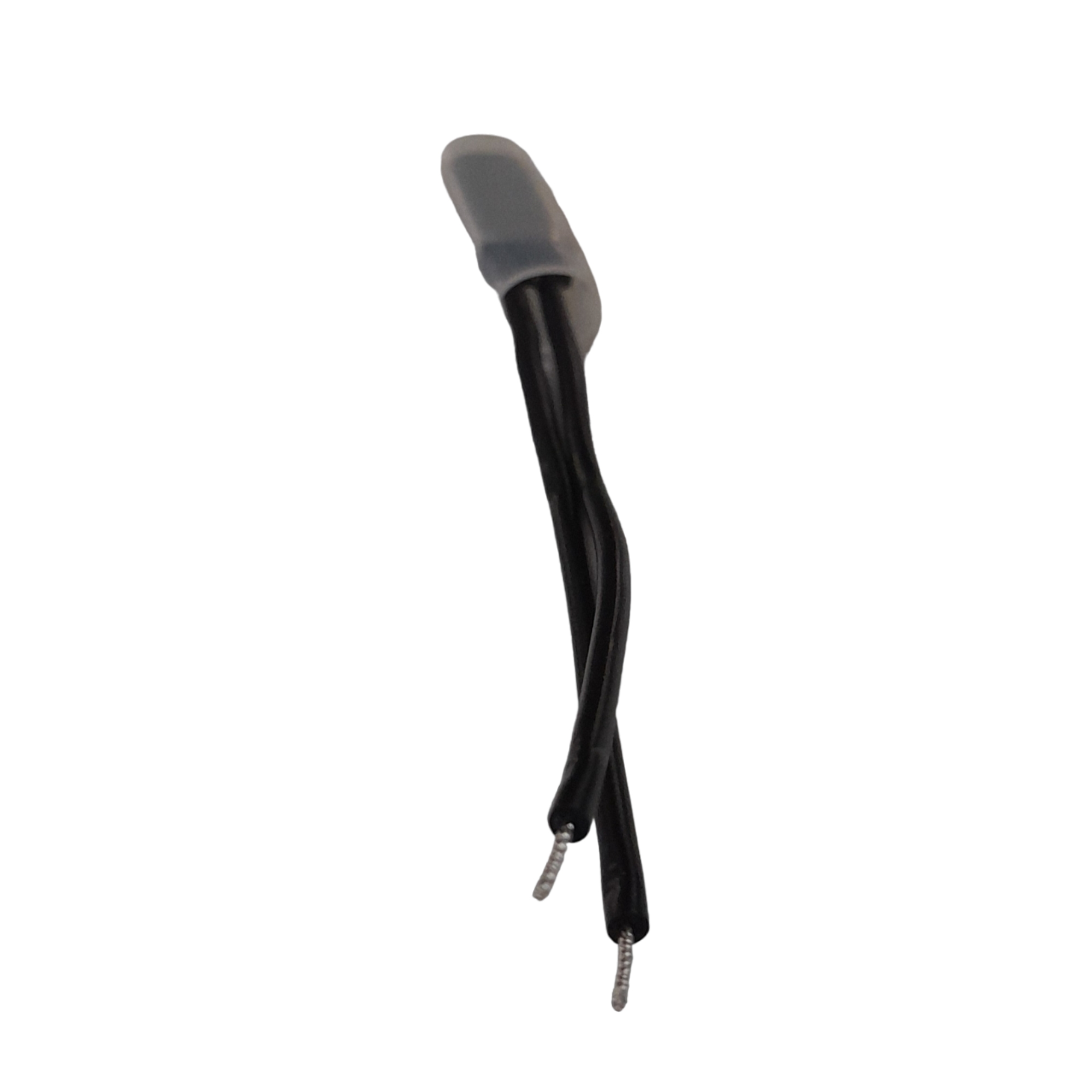

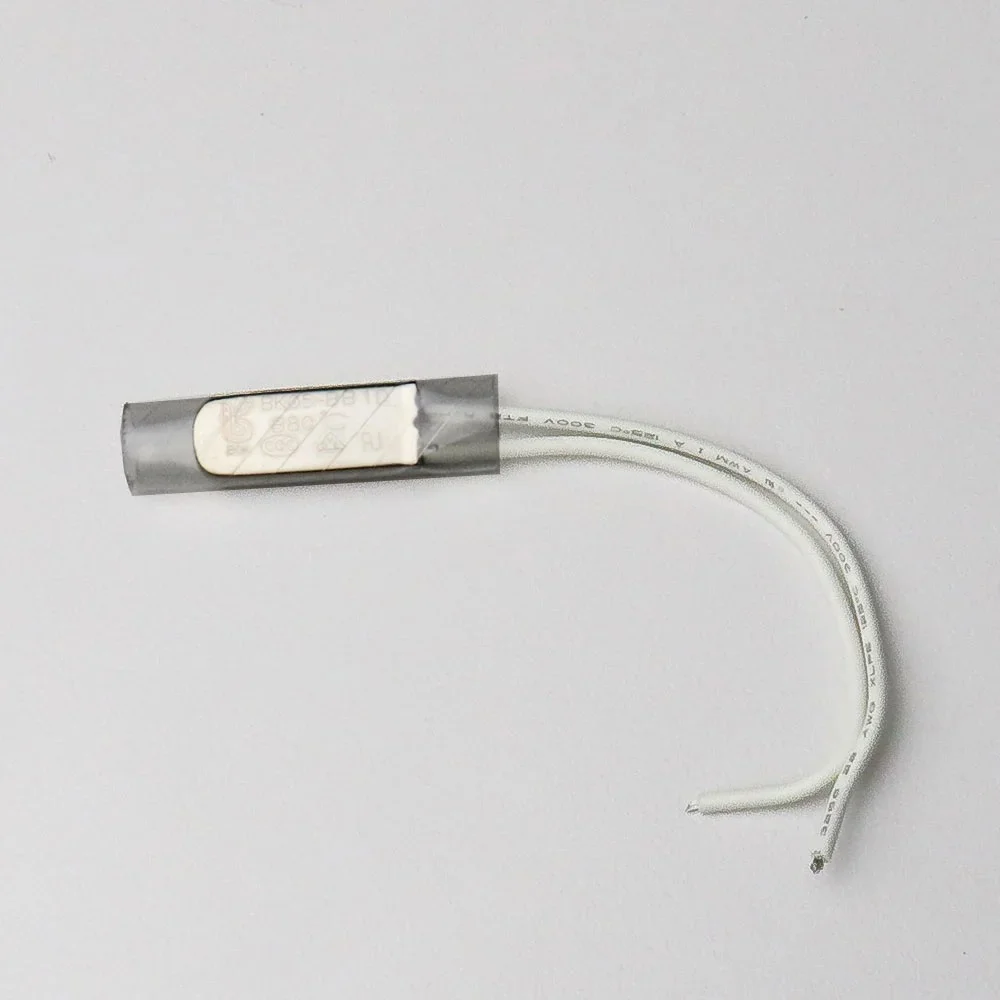

BK05 250V 5A 80°C Plastic Thermostatic Temperature Switch NC

The BK05 250V 5A 80°C Plastic Thermostatic Temperature Switch NC is a kind of thermostat that adapts the bimetal disc as the temperature sensing element. The bimetal disc is in the free state and the contacts are closed when the electrical appliance is working in normal condition.

When the ambient temperature rises to the preset operating temperature, the contacts open as the bimetal disc deforms to jump when being heated, then the circuit is cut off to control the temperature. Then the contacts will close automatically to cut on the circuit when the electrical appliance is cooled down to the reset temperature.

Widely used in home appliances and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc.

Features :

• Mechanical making and breaking of electrical circuits.
• Easy to use, small and handy module.
• Useful in a variety of applications.
• Acts as temperature operated circuit breaker.

Specifications:

• Model: KSD9700
• Rated Voltage(V): 250
• Operating Current (A): 5
• Operating Temperature (°C): 80
• Cable Length (cm): 7
• Head Dimensions(mm): 20x8x4
• Weight (gm): 3

Package Includes :

• 1 x BK05 250V 5A 80°C Plastic Thermostatic Temperature Switch NC.
