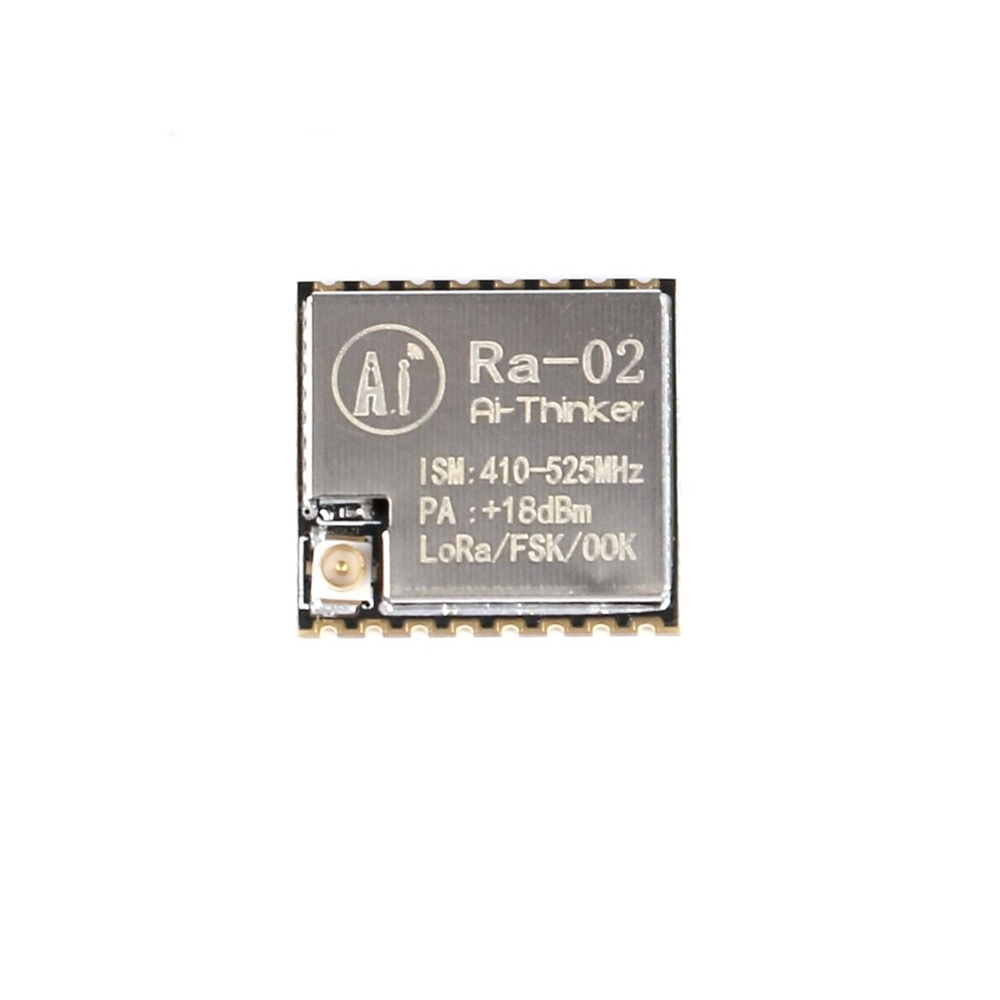

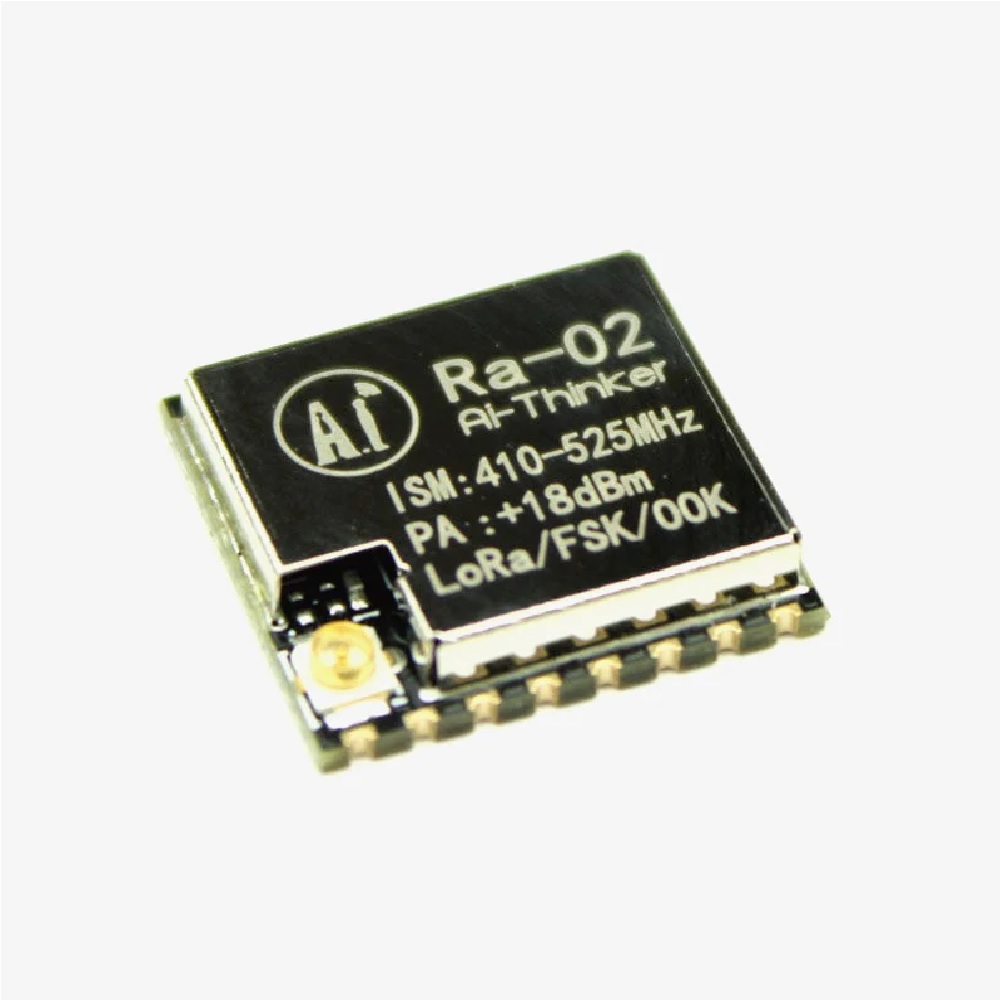

Ai-Thinker Ra-02 LoRa Spread Spectrum Wireless Module
₹410.00 (incl. GST)
Out of stock
Want to be notified when this product is back in stock?
Additional Information
✅ Prices Includes GST (GST Invoice Available)
✅ Free Shipping on Orders Above ₹999
✅ Items on Website is Ready Stock at our Store for Immediate Shipping
✅ Secure Checkout | Trusted Payments
✅ Estimated Delivery?
✅ Free Shipping on Orders Above ₹999
✅ Items on Website is Ready Stock at our Store for Immediate Shipping
✅ Secure Checkout | Trusted Payments
✅ Estimated Delivery?
The Ai-Thinker Ra-02 LoRa wireless module offers long-range, low-power wireless communication for IoT applications. Based on the Semtech SX1278 transceiver, this compact SMD module utilizes advanced LoRa™ spread spectrum technology for stable data transmission up to 10 km line-of-sight. It features high receiver sensitivity, robust anti-interference performance, and supports multiple modulation modes for flexible deployment in a variety of environments. The module includes a convenient IPEX connector for antenna integration and communicates with microcontrollers via a half-duplex SPI interface.
Features:
- LoRa™ spread spectrum modulation technology for extended range.
- Frequency range: 410–525 MHz (typically used at 433/470 MHz).
- High receiver sensitivity down to -141 dBm.
- Constant RF output power: +18 dBm ±1 dBm.
- Supports FSK, GFSK, MSK, GMSK, LoRa™, and OOK modulation.
- Half-duplex SPI interface.
- Programmable bit rates up to 300 kbps.
- Small footprint: 17 x 16 x 3.2 mm SMD package.
- IPEX antenna connector for reliable RF performance.
- Robust anti-interference and air wake-up capability.
- Operating voltage: 2.5V–3.7V (typical 3.3V).
- Low power consumption and wide operating temperature (-30°C to +85°C).
Specifications:
- Model: Ra-02
- Chipset: Semtech SX1278
- Frequency Range: 410 MHz – 525 MHz
- Transmit Power: Up to +18 dBm
- Receiver Sensitivity: -141 dBm (SF12)
- Interface: SPI (half-duplex)
- Bit Rate: Up to 300 Kbps
- Antenna Interface: IPEX (U.FL) connector
- Package: SMD-16, 17 x 16 x 3.2 mm
- Power Consumption: TX 93–97 mA; RX 12.15 mA; Standby 1.5–1.6 mA
- Operating Temperature: -30°C ~ +85°C
- Supply Voltage: 2.5 – 3.7V
- Storage Temp: -40°C ~ +90°C, <90%RH
- Weight: 10g
Application:
- Smart meter reading (AMR).
- Home and building automation.
- Security and alarm systems.
- Wireless sensor networks.
- Remote irrigation control.
- Industrial monitoring and long-range IoT gateways.
Package Includes:
- 1 x Ai-Thinker Ra-02 LoRa Spread Spectrum Wireless Module.
