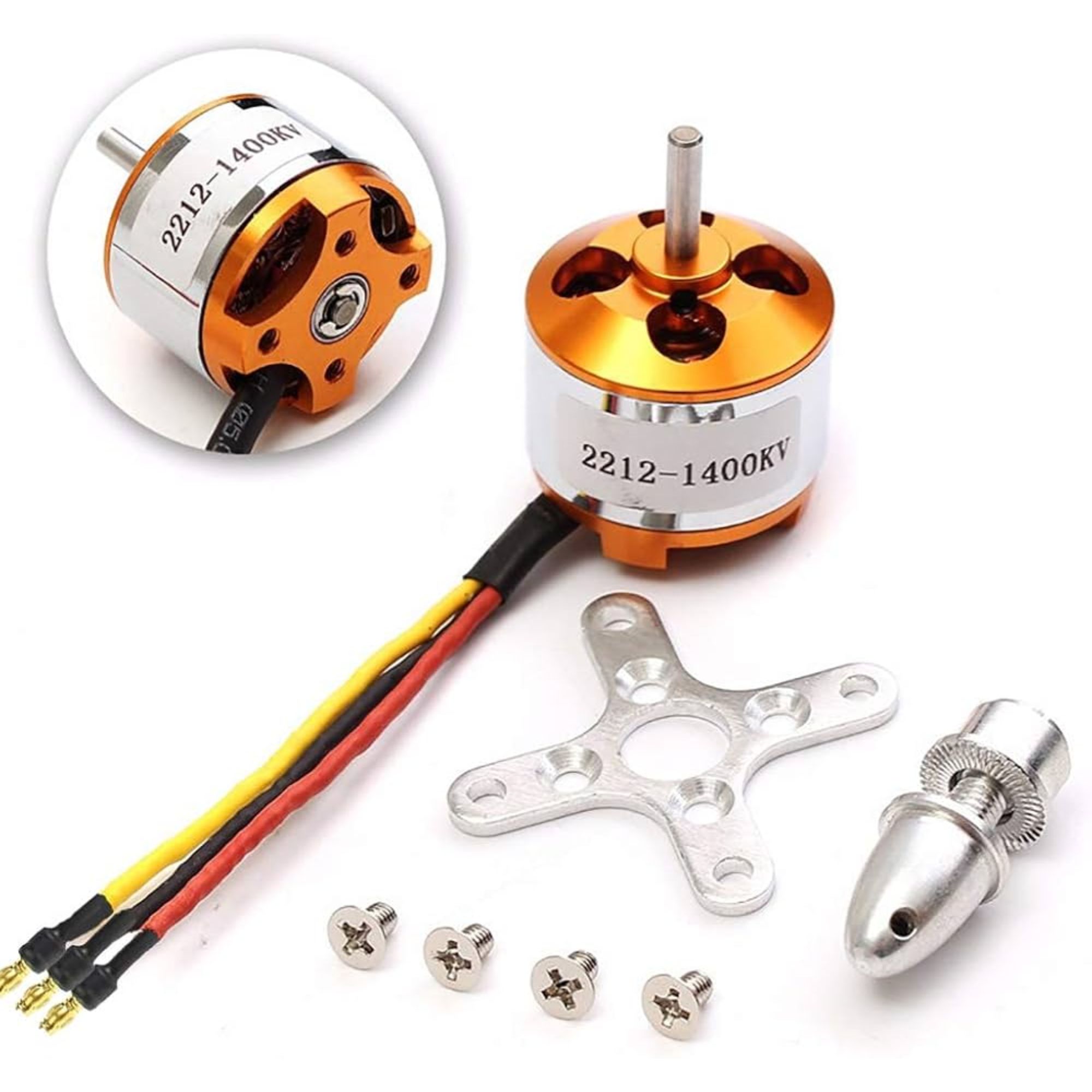

A2212 1400KV BLDC Brushless DC Motor

A2212 1400KV BLDC Brushless DC Motor is widely used for airplane aircraft quad copter. This motor comes with 80% maximum efficiency, 4-10A max current efficiency, and 16A / 60s current capacity. If you’re looking about your quadcopter’s performance, look no further than the A2212. Built with high-end magnets, a high pole count and custom motor mount, this motor is designed purely for multi-rotor applications.

The A2212 includes an integrated prop adaptor for use with many different style props featuring a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also has an in-built aluminum mount for quick and easy installation on your quadcopter frame. This is not a modified airplane out a runner. It was designed from the ground up specifically for multi-rotor applications.

This 2200kv brushless motor is equipped with the solid metal case which makes it reliable and durable. This A2212 Motor comes with the pre-soldered good quality connector for a fast and direct connection between ESC and the motor.

Note: “This motor is bi-directional which means it can rotate in CW or CCW direction by swapping the polarity of input supply.”

Features :

• The steel design is capable of withstanding competitional conditions.
• Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
• Compact size.
• Offers great performance and value for money.
• Smooth throttle response for best RC experience.

Specifications:

• Model: A2212
• Motor KV (RPM/V): 1400
• LiPo Batteries: 2S-3S
• Shaft Diameter (mm): 3.17
• Maximum Efficiency: 0.8
• Current Handling Capacity: 16A/60S
• No-Load Current: 0.7A @10V
• Max. Efficiency Current: 4-10A (>75%)
• Length (mm): 30
• Width (mm): 27.5
• Weight (gm): 48
• Minimum ESC Specification: 18A (30A Suggested)
• Thrust @ 3S with 1045 propeller: 1000 gms approx
• Thrust @ 3S with 9045 propeller: 650 gms approx
• Thrust @ 3S with 0845 propeller: 550 gms approx

Applications :

• Drones
• Quadcopters
• Multirotors
• RC Airplanes
• UAV

Package Includes :

• 1 x A2212 1400Kv Brushless Motor for Drone
• 1 x Prop Adapter
• A Motor Holder (X-type) and set of screws
