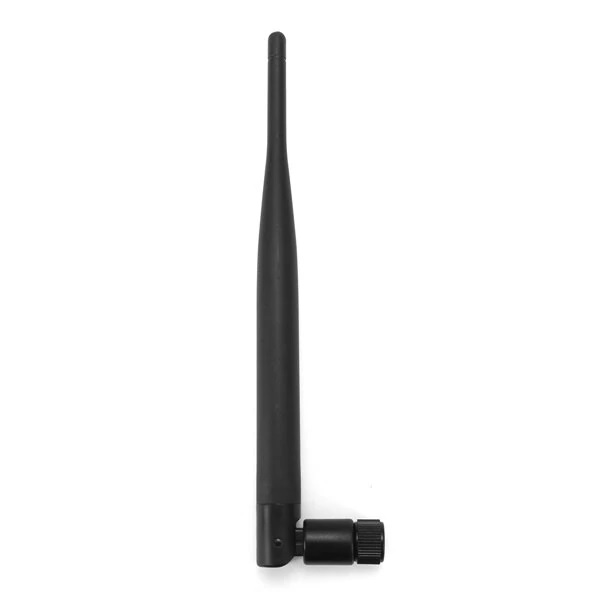

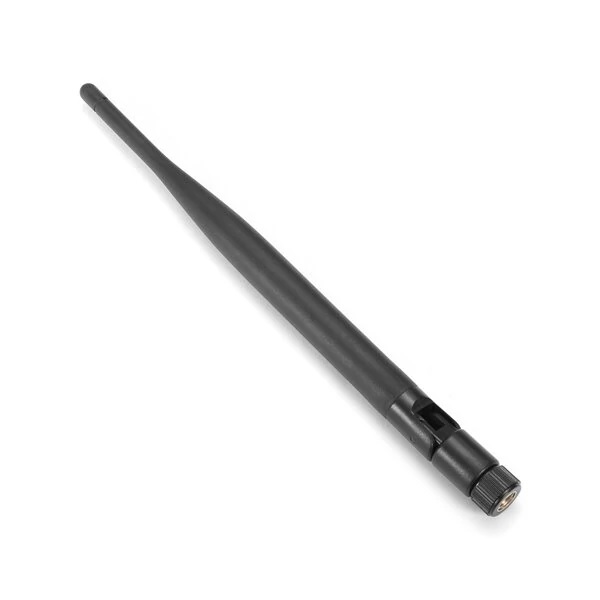

2.4GHz 6dBi WiFi Antenna SMA Male, Omni Directional 195mm

Boost your wireless performance with this 2.4GHz 6dBi WiFi Antenna SMA Male Omni-Directional. Designed for extended coverage and reliable connectivity, this antenna is ideal for wireless routers, access points, ESP32/ESP8266 modules, WiFi cameras, and other 2.4GHz devices.

With a gain of 6dBi, it delivers enhanced signal strength and improved range compared to standard antennas. The RP-SMA male connector ensures compatibility with a wide range of WiFi devices, and the omni-directional design means it can transmit and receive signals in all directions for maximum coverage.

Its hinged design allows for flexible positioning for optimal performance.

Features:

• Frequency: 2.4GHz ISM band
• Gain: 6dBi for extended signal range
• Connector: SMA male (reverse polarity)
• Type: Omni-directional antenna
• Ideal for WiFi routers, IoT boards, FPV drones, wireless adapters
• Flexible angle/tilt via hinged connector
• Compatible with ESP32, ESP8266, NodeMCU, Arduino WiFi shields

Specifications:

• Frequency Range: 2400–2500 MHz
• Gain: 5-6dBii
• Antenna Type: Omni-directional
• Connector Type: SMA Male
• Polarization: Vertical
• Impedance: 50 Ohms
• VSWR: ≤ 2.0
• Gain distance: 1-70m

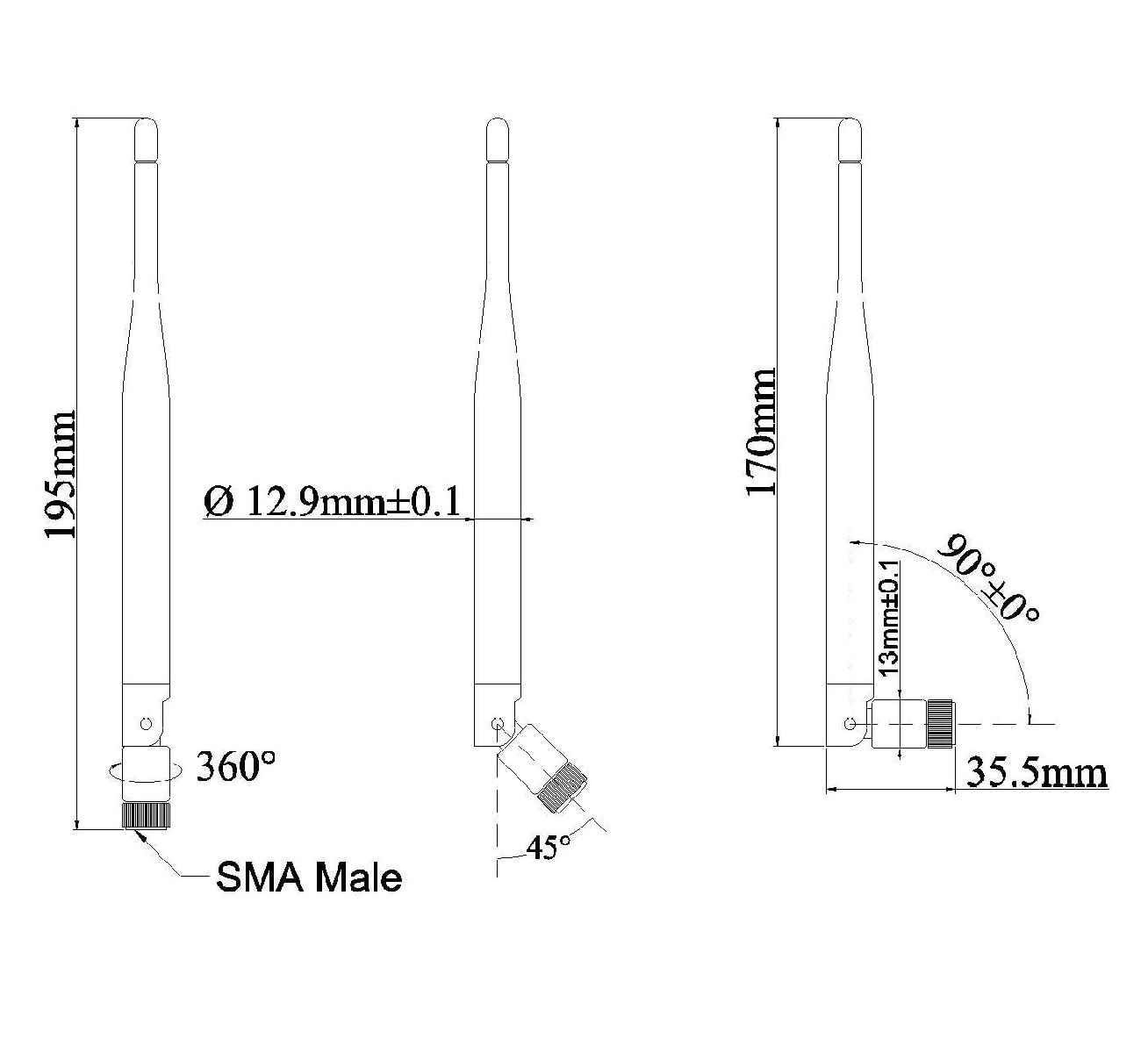

• Length Approx: 19.5 cm (adjustable)
• Material: ABS plastic with brass connector
• Mounting: Screw-on, hinged base

Applications:

• WiFi routers and access points
• ESP32 / ESP8266 / Arduino WiFi projects
• Wireless IP cameras
• FPV drones and wireless telemetry
• Signal boosting in low-signal environments
• IoT device communication

Package Includes:

• 1 x 2.4GHz 6dBi WiFi Antenna

Note: Image is for reference only.
