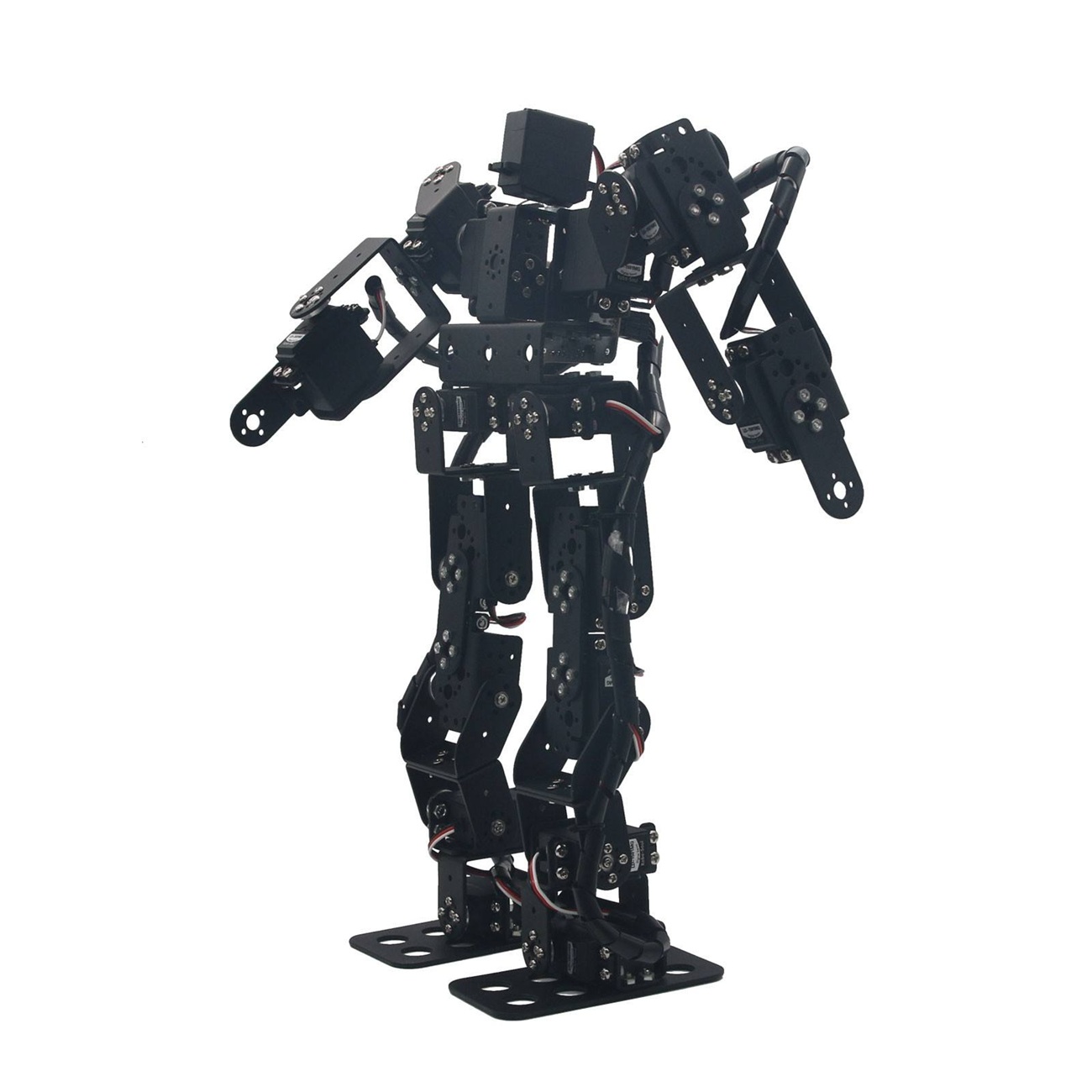

Full Set of 17DOF Biped Robot Educational Robotic Kit +(17pcs) MG995+Servo Horn Unassembled

This 17DOF Biped Robot Educational Robotic Kit features high-quality full aluminum construction and includes 17 MG995 high-torque servo motors with metal gears and matching servo horns. Designed for STEM learning, robotics research, and advanced DIY projects, its mechanical frame offers precise humanoid movement potential. The Biped walking robot kit kit is ideal for hobbyists, students, robotic competitions, and makers, delivering hands-on educational value and robust performance. This 17DOF biped robot kit is Unassembled and required Assembly + controller and battery is not included in kit.

Features:

• Full aluminum frame, smooth edges for safety
• Includes 17 MG995 high-torque servo motors (14kg/cm at 4.8V, 16kg/cm at 6V)
• 17 servo horns included for reliable connections

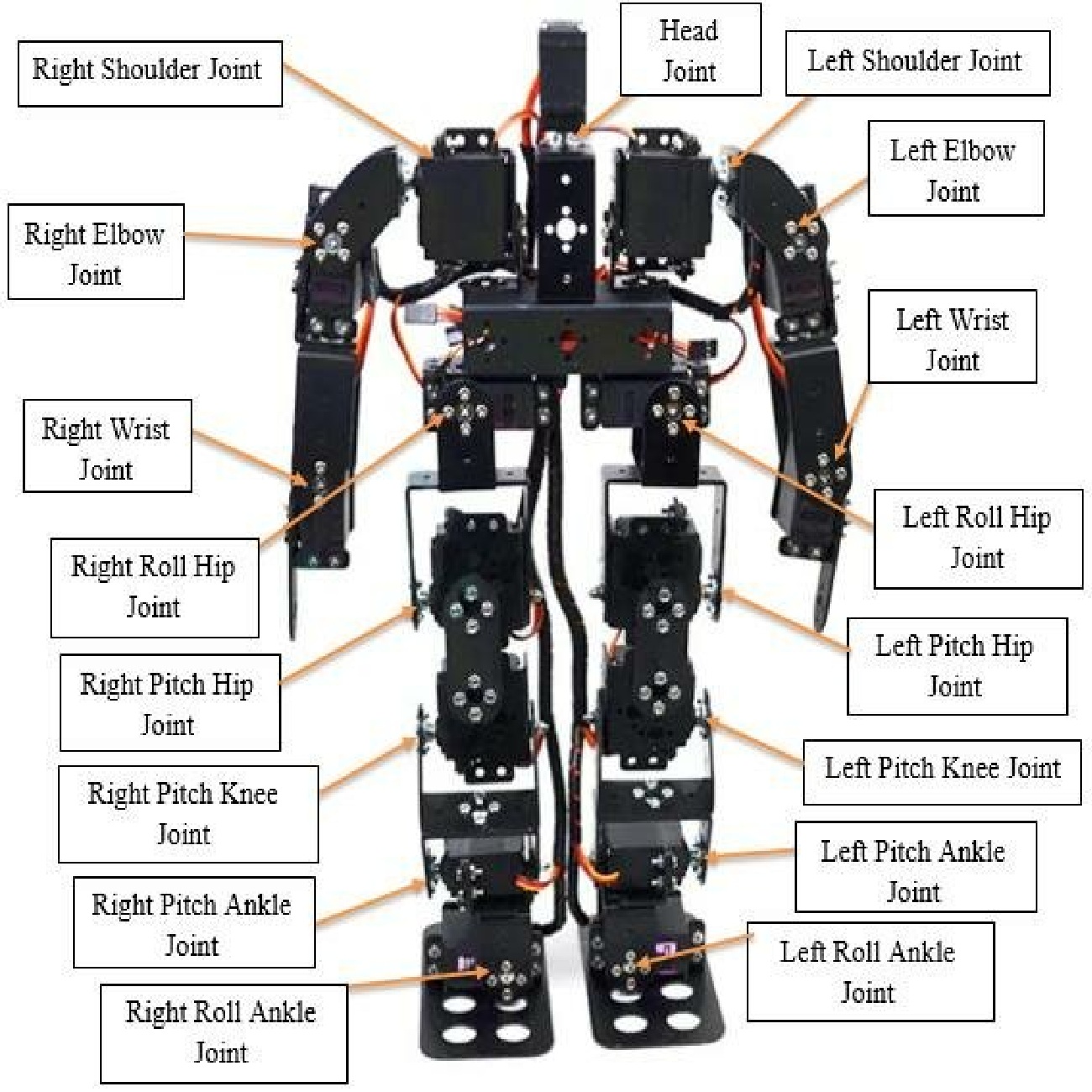

• 17 Degrees of Freedom: head, arms, shoulders, hips, legs, and feet
• Modular brackets for easy custom assembly
• Ideal for humanoid biped motion and complex robotic sequences
• Unassembled for hands-on learning and customization

Specifications:

• Material: Aluminum
• Frame Color: Black/Silver
• Height: 40 cm
• Width: 23 cm
• Servos: 17x MG995, Metal Gear, Ball Bearing
• Servo Torque: 13KG/CM(4.8V); 15KG/CM(6.0V)
• Servo Size: 40.8mm x 20mm x 38mm
• Operating Voltage: 4.8–7.2V
• Servo Horns: 17 Metal servo horns
• Bearings: 14 Miniature Ball Radial Bearings
• Kit Weight:  ~1900g
• Control Hardware Controller not included
• Power Battery not included

Application:

• Robotics education and research projects
• STEM learning and engineering classrooms
• DIY robotics competitions
• Advanced humanoid robot prototyping
• Maker and electronics workshops

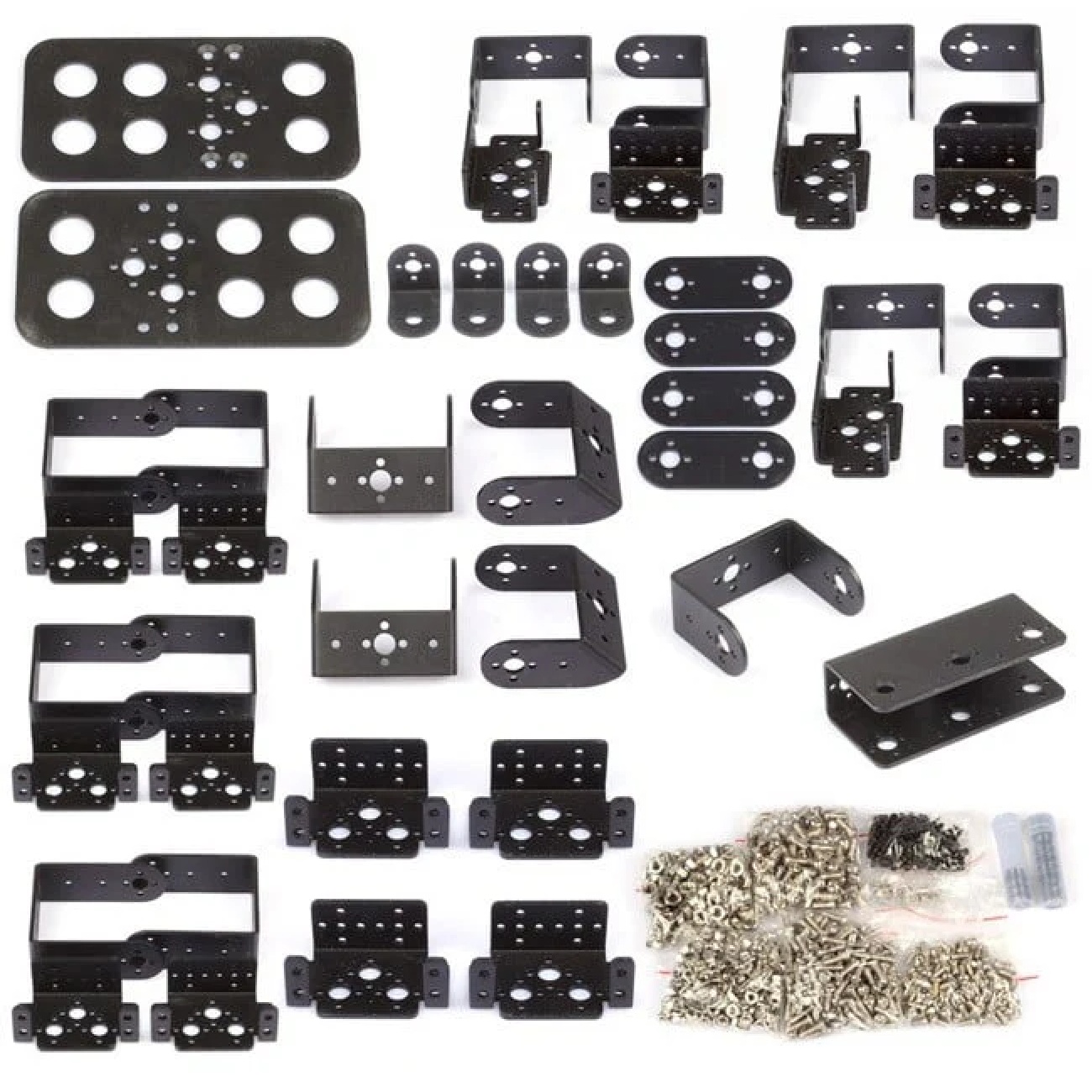

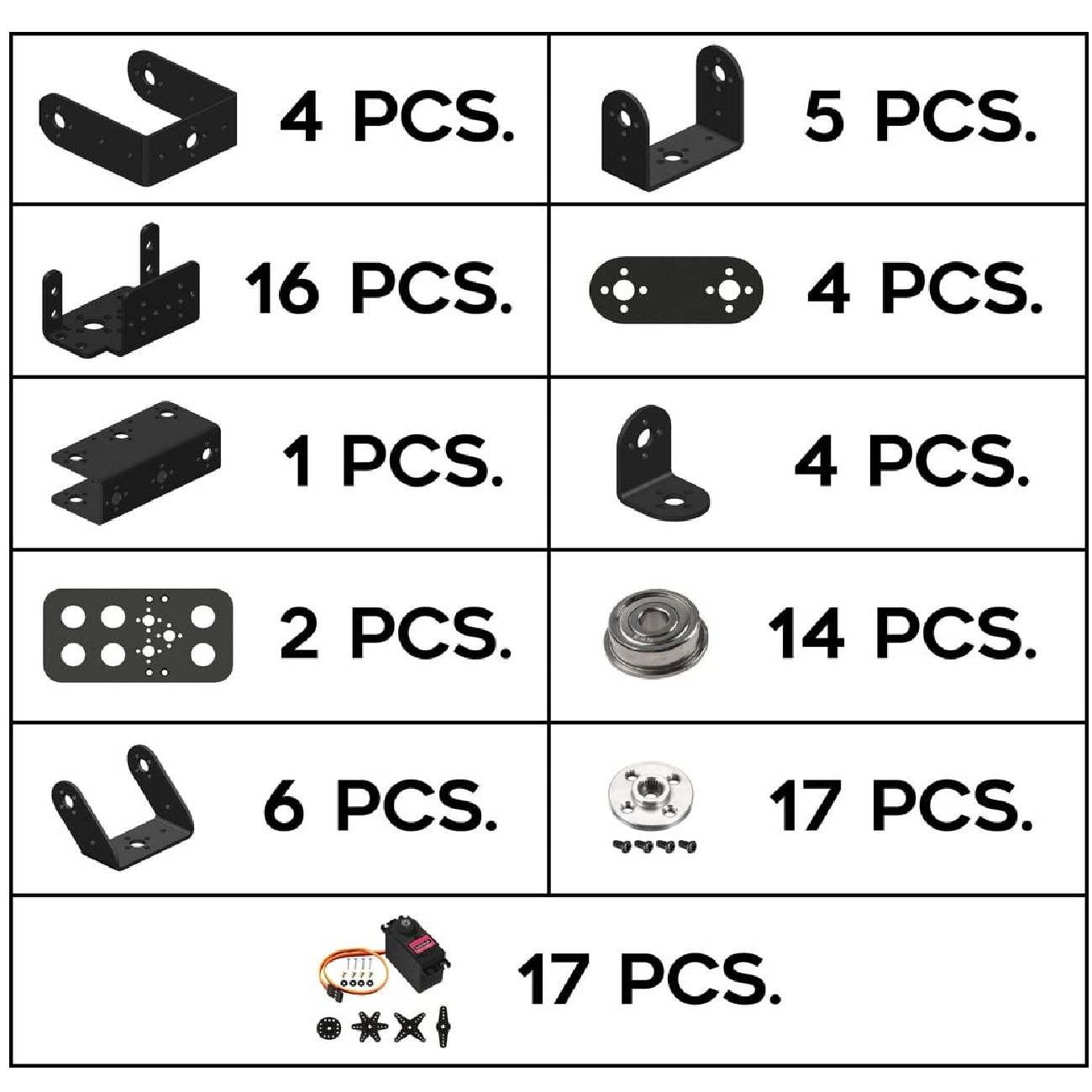

Package Includes:

• 17x MG995 High Torque Servo Motors
• 17x Metal Servo Horns
• 12x Multifunctional Servo Brackets
• 7x Short U-shaped Brackets
• 4x Long U-shaped Brackets
• 4x Inclined U-shaped Brackets
• 4x L-shaped Brackets
• 1x U-type Robot Waist Bracket
• 2x Foot Base/Bigfoot Plates
• 14x Bearings
• 1x Screw and Screw Cap Set

Note: Kit does not include controller or battery. This is DIY kit so not eligible for return / replacement.

Useful Links:

• 17DOF Biped Robot Educational Robotic Kit Assemble guide
