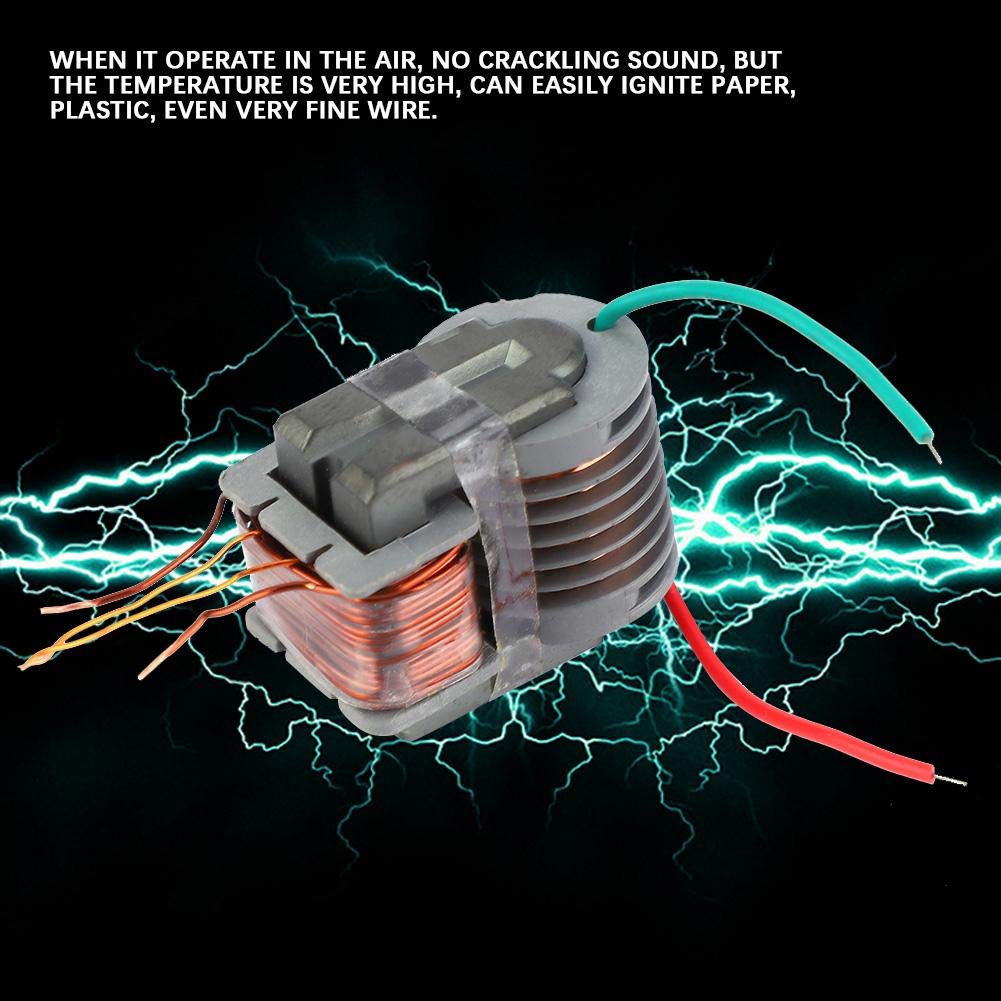

15KV High Voltage Generator Arc Ignition Inverter Step Up Boost Coil Module

15KV High Voltage Generator Arc Ignition Inverter Step Up Boost Coil Module adapts to 12V, but it needs adding base feedback resistor to 150 ohm-1.5K ohm; its resistance should be adjusted from high to low but cannot be too low, or it will burn triode or the product; it also cannot be too high, or it will influence output effect or make triode overheating in non-operation state.

Features:

• Generates 15KV high voltage output
• Arc ignition inverter
• The step-up boost coil module
• Compact design for versatile use
• Ideal for ignition systems and science experiments
• Efficient and reliable high voltage source.

Specifications:

• Input Voltage (V): 12V
• Length (mm): 29
• Width (mm): 24
• Height (mm): 18

Package Includes:

• 1 x 15KV High Voltage Generator Arc Ignition Inverter Step Up Boost Coil Module

Note:

• 15kV is max output, and limit output shouldn’t be over 15kV, that is 1.5cm arc, or it will destroy the product.
• If users want to use it for continuous operation, then it is recommended that you should use insulating wax or epoxy resin to sealing entirely.
